Anthra W10
(KDV Dahil)
Saat 14:00’a kadar vermiş olduğunuz siparişleriniz aynı gün kargoya verilir. 14:00’dan sonraki siparişler ertesi iş günü kargoya verilir.
Ödemeleriniz İyzico güvencesi ile temin edilmektedir.
Seçenekleri belirleyin

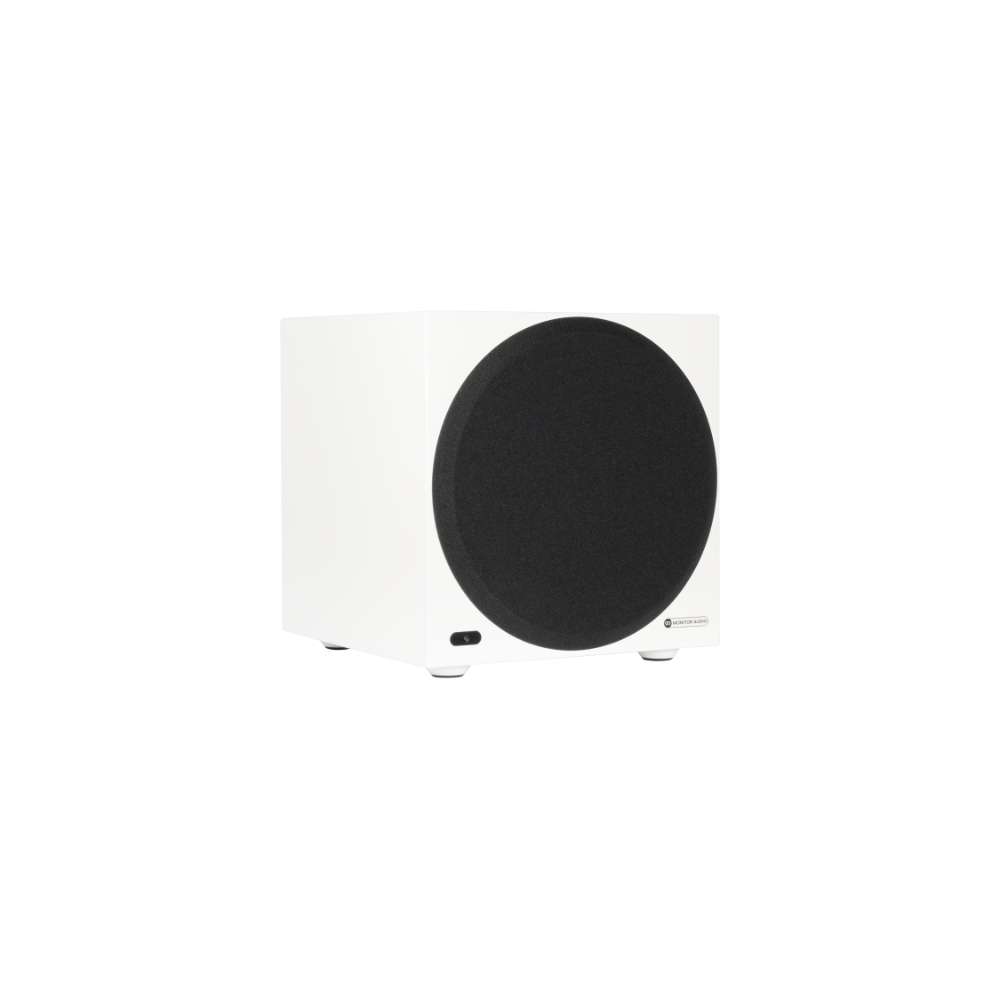

W10, Anthra subwoofer serisinin en kompakt modelidir.
İçerisinde, kapsamlı bir şekilde içten desteklenmiş,
sızdırmaz kutuya sahip olan bir Class-D 500 Watt
amplifikatör tarafından beslenen 10” (25 cm) Rigid
Surface Technology II (RST II) C-CAM yüksek hareketli sürücü bulunur.
System Format
Active – Sealed Cabinet
Drive Unit Complement
1x 10" (254 mm) High Linear-Excusion Triple Suspension Driver
Amplifier Classification
High-Efficiency Class-D
Lower Frequency Limit
-6dB @17Hz
Upper Frequency Limit
(LPF Off) -6dB @400Hz
Driver Excursion (pk-pk)
50 mm
DSP
28 Bit 50 MIPS Configuratable through MaestroUnite
Analogue Digital Conversion
Autoranging Input which combines a 10Vrms maximum
input with low signal to noise for small signals
Amplifier Output Power, 240Vac
Instantaneous: 500 W*
Continuous short-term: 425 W**
Amplifier Output Power, 120Vac
Instantaneous: 450 W
Continuous short-term: 390 W
LED UI Control
Brightness, On-Off
Phase Control
0-360 Degrees measured at LPF Crossover
Low Pass Filter
20-200Hz LPF with Roll off Adjustable from -3 to -48dB/Oct
Custom EQ
Configurable through MaestroUnite;3 pre-defined EQ
curves plus 3 custom EQ curves each with 8 band
custom EQ supporting (Peaking, High Shelf, Low Shelf, High Pass)
Volume Level
Wide adjustable input gain to allow maximum
output from a wide range of input signals

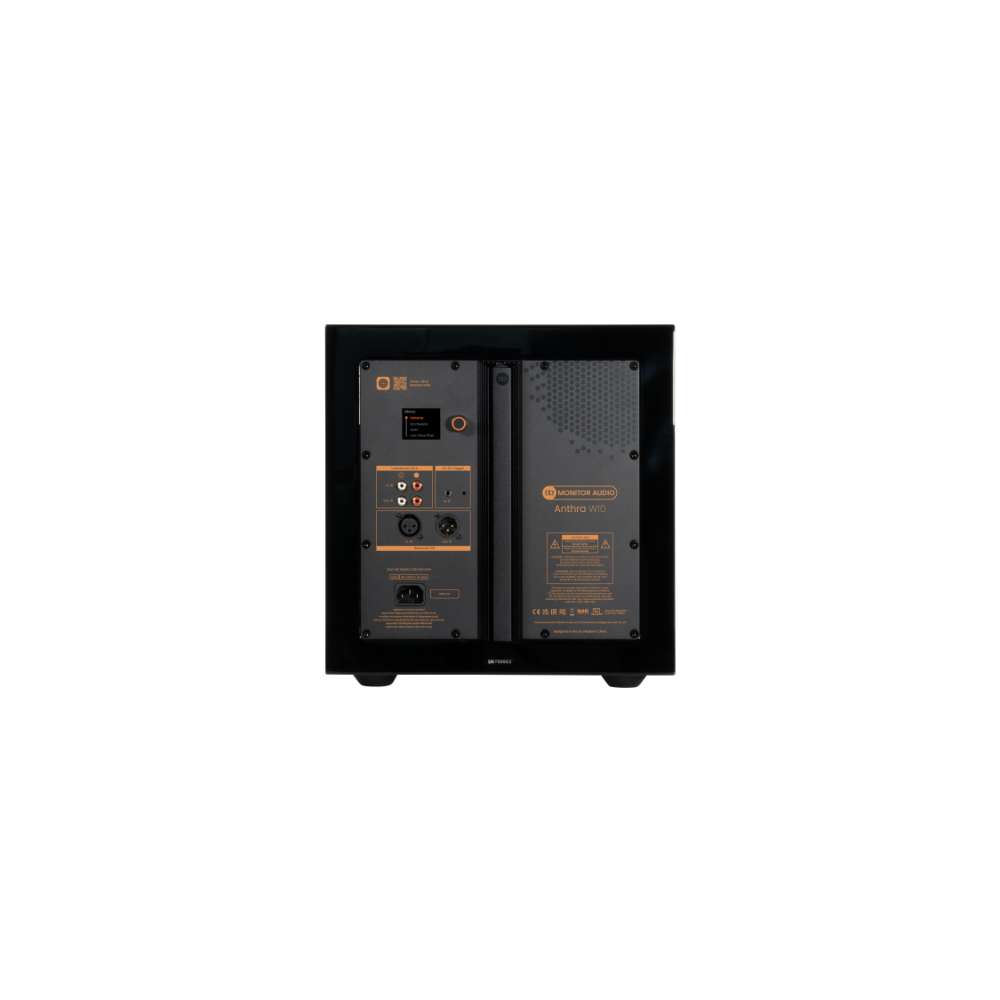

Inputs
Stereo Unbalanced RCA (or mono/LFE using only
connector marked LFE)Mono/LFE Balanced XLR
Outputs
Stereo unbalanced outputs with unbuffered throughput
from RCA Inputs Mono/LFE Balaned XLR outputs
with unbuffered throughput from XLR Input
Mains Input Voltage
Universal Mains, 85-265VAC
External Dimensions (without feet) (HxWxD)
321 x 321 x 321 mm
Power Consumption
120 W
Cabinet Construction
Braced 18 mm thick MDF with 36 mm front baffle
Grille
Cloth covered magnetically attached Grilles
Weight
20.06 kg (44 lb 1 oz)
