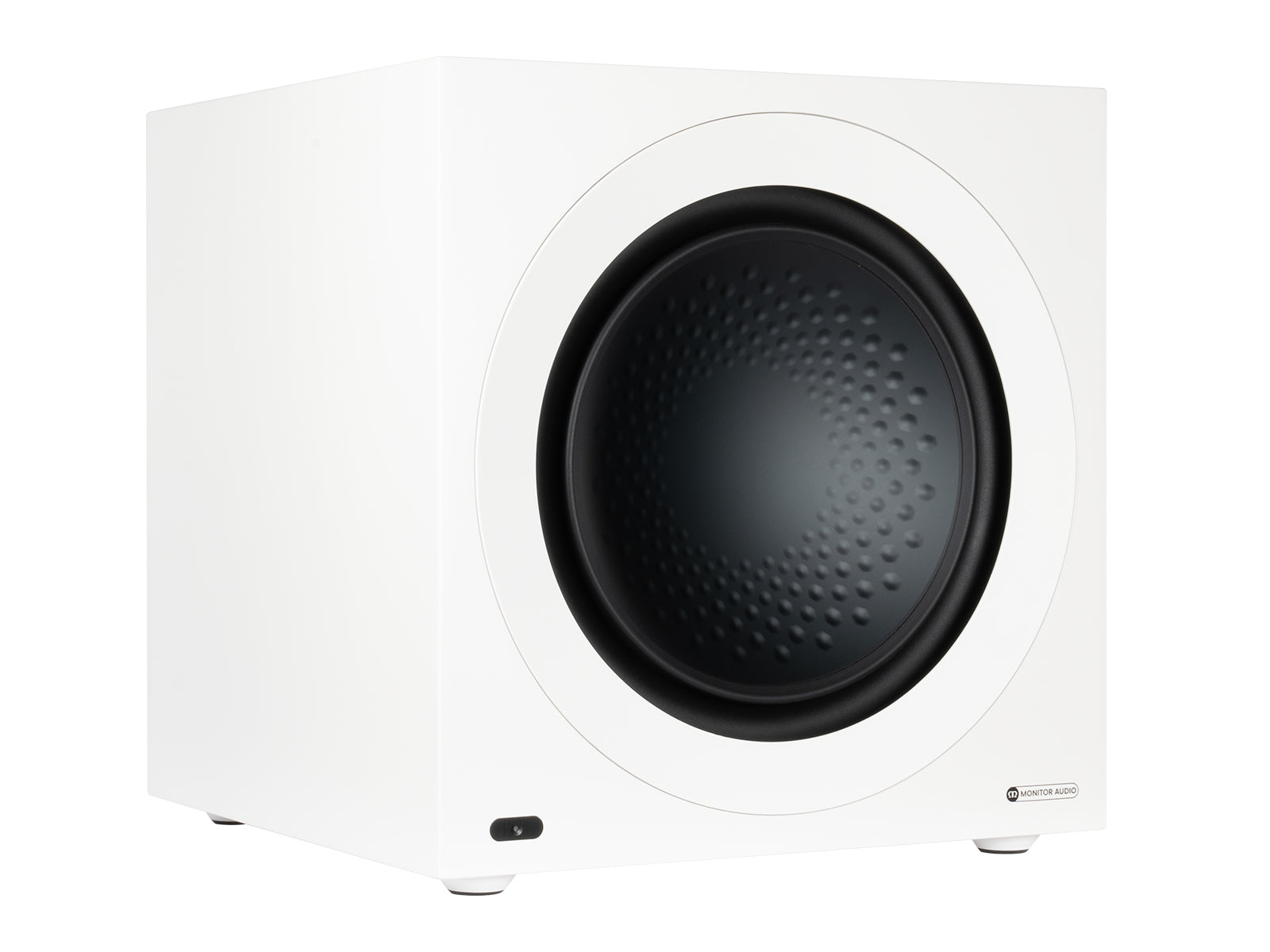

Anthra W15
(KDV Dahil)
Saat 14:00’a kadar vermiş olduğunuz siparişleriniz aynı gün kargoya verilir. 14:00’dan sonraki siparişler ertesi iş günü kargoya verilir.
Seçenekleri belirleyin
Ayrıntılar Ve Özellikler
Genel
Teknik Özellikler
W15, Anthra subwoofer serisinin en büyük modelidir.
İçerisinde, kapsamlı bir şekilde içten desteklenmiş,
sızdırmaz kutuya sahip olan bir Class-D 1.500 Watt
amplifikatör tarafından beslenen 15” (38 cm)
Rigid Surface Technology II (RST II) C-CAM yüksek hareketli sürücü bulunur.
System Format
Active - Sealed Cabinet
Drive Unit Complement
1x 15" (381 mm) High Linear-Excusion Triple Suspension Driver
Amplifier Classification
High-Efficiency Class-D
Lower Frequency Limit
-6dB @16Hz
Upper Frequency Limit
(LPF Off) -6dB @400Hz
Driver Excursion (pk-pk)
50 mm
DSP
28 Bit 50 MIPS Configuratable through MaestroUnite
Analogue Digital Conversion
Autoranging Input which combines a 10Vrms maximum input
with low signal to noise for small signals
Amplifier Output Power, 240Vac
Instantaneous: 2500 W*
Continuous short-term: 1400 W**
Amplifier Output Power, 120Vac
Instantaneous: 2500 W
Continuous short-term: 1400 W
LED UI Control
Brightness, On-Off
Phase Control
0-360 Degrees measured at LPF Crossover
Low Pass Filter
20-200Hz LPF with Roll off Adjustable from -3 to -48dB/Oct
Custom EQ
Configurable through MaestroUnite;3 pre-defined EQ
curves plus 3 custom EQ curves each with 8 band custom
EQ supporting (Peaking, High Shelf, Low Shelf, High Pass)
Volume Level
Wide adjustable input gain to allow maximum
output from a wide range of input signals
Inputs
Stereo Unbalanced RCA (or mono/LFE using only connector marked LFE)
Mono/LFE Balanced XLR
Outputs
Stereo unbalanced outputs with unbuffered throughput from RCA Inputs
Mono/LFE Balaned XLR outputs with unbuffered throughput from XLR Input
Mains Input Voltage
Universal Mains, 85-265VAC
External Dimensions (without feet) (HxWxD)
439 x 439 x 439 mm
Power Consumption
550 W
Cabinet Construction
Braced 25 mm thick MDF with 36 mm front baffle
Grille
Cloth covered magnetically attached Grilles
Weight
35.41 kg (78 lb 1 oz)
